9YRW | pdb_00009yrw

Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with O5'-(L-GLUTAMYL-SULFAMOYL)-ADENOSINE

PDB DOI: https://doi.org/10.2210/pdb9YRW/pdb

Classification: TRANSFERASE
Organism(s): Plasmodium falciparum 3D7
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-10-17 Released: 2025-11-05
Deposition Author(s): Seattle Structural Genomics Center for Infectious Disease (SSGCID)
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), National Institutes of Health/Office of the Director

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.03 Å
R-Value Free:
0.200 (Depositor), 0.202 (DCC)
R-Value Work:
0.177 (Depositor), 0.182 (DCC)
R-Value Observed:
0.179 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with O5'-(L-GLUTAMYL-SULFAMOYL)-ADENOSINE

Liu, L., Lovell, S., Battaile, K.P.

To be published.

Macromolecule Content

Total Structure Weight: 110.75 kDa
Atom Count: 7,554
Modeled Residue Count: 859
Deposited Residue Count: 932
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

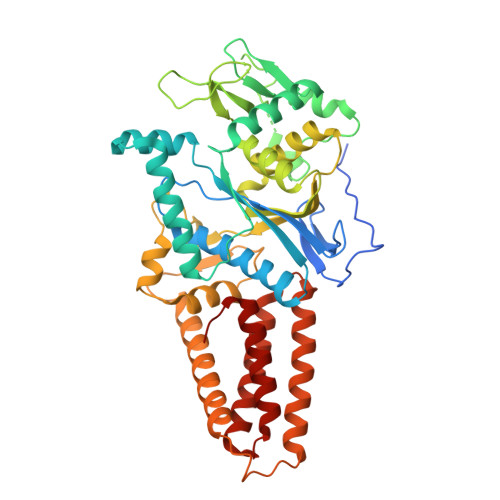

Cysteine--tRNA ligase	A, B	466	Plasmodium falciparum 3D7	Mutation(s): 0 Gene Names: PF3D7_1015200.1 EC: 6.1.1.16
UniProt
Find proteins for Q8IJP3 (Plasmodium falciparum (isolate 3D7)) Explore Q8IJP3 Go to UniProtKB: Q8IJP3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q8IJP3
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GSU (Subject of Investigation/LOI) Query on GSU Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain L [auth B] MOL2 format, chain E [auth A] MOL2 format, chain L [auth B] mmCIF format, chain E [auth A] mmCIF format, chain L [auth B]	E [auth A], L [auth B]	O5'-(L-GLUTAMYL-SULFAMOYL)-ADENOSINE C₁₅ H₂₁ N₇ O₉ S YBRKRYFZKHICLS-WERHYGNASA-N		Interactions Focus chain E [auth A] Focus chain L [auth B] Interactions & Density Focus chain E [auth A] Focus chain L [auth B]
MLI Query on MLI Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B]	C [auth A], D [auth A], I [auth B], J [auth B], K [auth B]	MALONATE ION C₃ H₂ O₄ OFOBLEOULBTSOW-UHFFFAOYSA-L		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B]
ZN (Subject of Investigation/LOI) Query on ZN Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain M [auth B] MOL2 format, chain F [auth A] MOL2 format, chain M [auth B] mmCIF format, chain F [auth A] mmCIF format, chain M [auth B]	F [auth A], M [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain M [auth B] Interactions & Density Focus chain F [auth A] Focus chain M [auth B]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain N [auth B] SDF format, chain O [auth B] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B]	G [auth A], H [auth A], N [auth B], O [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain N [auth B] Focus chain O [auth B] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain N [auth B] Focus chain O [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.03 Å
R-Value Free: 0.200 (Depositor), 0.202 (DCC)
R-Value Work: 0.177 (Depositor), 0.182 (DCC)
R-Value Observed: 0.179 (Depositor)

Space Group: P 6₁ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 120.001	α = 90
b = 120.001	β = 90
c = 367.223	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHASER	phasing
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-11-05

Deposition Author(s):

Seattle Structural Genomics Center for Infectious Disease (SSGCID)

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	75N93022C00036
National Institutes of Health/Office of the Director	United States	S10OD030394
