 9XVJ | pdb_00009xvj

Crystal structure of Dengue 2 Virus NS2B/NS3 Protease


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free:
    0.211 (Depositor), 0.210 (DCC)
  • R-Value Work:
    0.171 (Depositor), 0.170 (DCC)
  • R-Value Observed:
    0.174 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9XVJ

Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history.

Literature

Structural insights into DENV-2 NS2B-NS3 protease and inhibition by glutathione-coated gold nanocluster.

Zhu, H., Niu, W., Xu, Y., Li, Z., Xia, D., Chen, S., Zhang, B., Wang, J., Yang, H., Gao, X., Chen, Y., Gong, Y., Cao, P., Zhou, Y.

(2026) Arch Virol 171

  • DOI: https://doi.org/10.1007/s00705-026-06662-w
  • Primary Citation Related Structures:
    9XVJ

  • PubMed Abstract:

    Dengue virus (DENV) continues to pose a significant global health threat, with increasing infection rates and limited treatment options. The viral NS2B-NS3 protease (NS2B-NS3pro), a highly conserved two-component enzyme essential for polyprotein processing and replication, is a key target for antiviral drug development. Here, we report the 2.25 Å-resolution crystal structure of DENV serotype 2 (DENV-2) NS2B-NS3pro, in which a PEG fragment is bound within a solvent-exposed pocket between β10, β11, β14 and β15 of NS3. This structure reveals a previously unrecognized solvent-exposed PEG-binding pocket, which may represent a putative ligand-binding surface for future validation and inhibitor-design studies. We also show that the glutathione-coated gold nanocluster (GSH-AuNC) directly inhibits DENV-2 NS2B-NS3pro. Bio-layer interferometry and fluorescence-based protease assays indicate that the nanocluster binds NS2B-NS3pro with a dissociation constant of 15.64 µM and inhibits its catalytic activity with an IC 50 of 16.04 µM, consistent with a direct inhibitory effect at the in vitro enzymatic level. Molecular dynamics simulations further suggest that GSH-AuNC is predicted to interact with the catalytic triad of NS2B-NS3pro, forming stable electrostatic and van der Waals interactions that may interfere with substrate access. Collectively, these findings provide an in vitro structural and biochemical basis for targeting DENV-2 NS2B-NS3pro and may inform future development of small-molecule or nanomedicine-based inhibitors, although cell-based antiviral efficacy, cytotoxicity, and cellular uptake remain to be evaluated.


  • Organizational Affiliation:
    • College of Chemistry and Life Science, Beijing University of Technology, Beijing, 100124, China.

Macromolecule Content

  • Total Structure Weight: 25.9 kDa
  • Atom Count: 1,662
  • Modeled Residue Count: 200
  • Deposited Residue Count: 236
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure

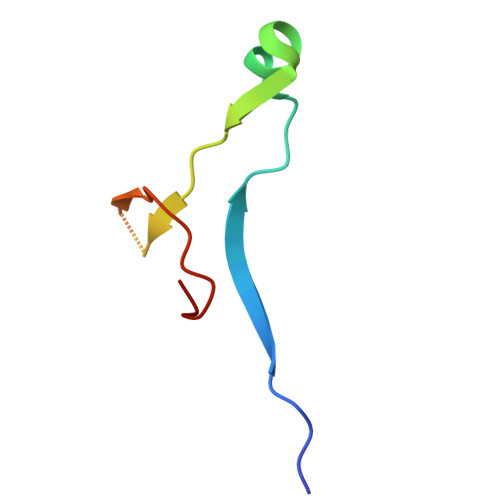

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
non-structural protein 2B51dengue virus type 2Mutation(s): 0
EC: 2.7.7.48
UniProt
Find proteins for A0A2Z1U9C4 (Dengue virus type 2)
Explore A0A2Z1U9C4
Go to UniProtKB:  A0A2Z1U9C4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A2Z1U9C4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure

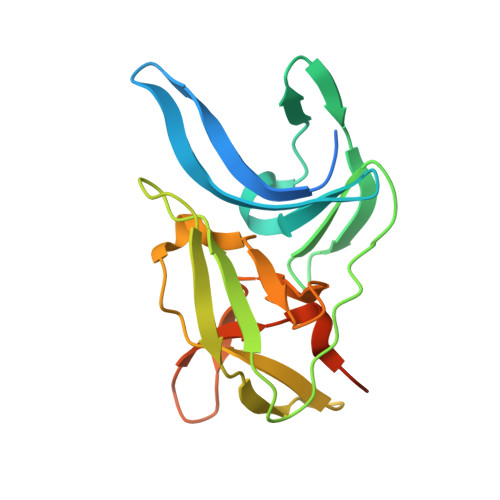

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
non-structural protein 3 protease185dengue virus type 2Mutation(s): 0
Gene Names: POLY
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free:  0.211 (Depositor), 0.210 (DCC)
  • R-Value Work:  0.171 (Depositor), 0.170 (DCC)
  • R-Value Observed: 0.174 (Depositor)
Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.28α = 90
b = 62.32β = 90
c = 115.63γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentChinaKZ202210005001

Revision History  (Full details and data files)

  • Version 1.0: 2026-10-28
    Type: Initial release
