9X02 | pdb_00009x02

Crystal structure of human type VII collagen vWFA2 domain in complex with homo-trimeric collagen model peptide.

PDB DOI: https://doi.org/10.2210/pdb9X02/pdb

Classification: CELL ADHESION
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-09-29 Released: 2026-10-07
Deposition Author(s): Hashimoto, M., Oki, H., Kawahara, K., Fujii, K., Koide, T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.47 Å
R-Value Free:
0.217 (Depositor), 0.216 (DCC)
R-Value Work:
0.176 (Depositor), 0.175 (DCC)
R-Value Observed:
0.180 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9X02

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of human type VII collagen vWFA2 domain in complex with homo-trimeric collagen model peptide.

Hashimoto, M., Oki, H., Kawahara, K., Fujii, K., Koide, T.

To be published.

Macromolecule Content

Total Structure Weight: 53.27 kDa
Atom Count: 4,361
Modeled Residue Count: 502
Deposited Residue Count: 520
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

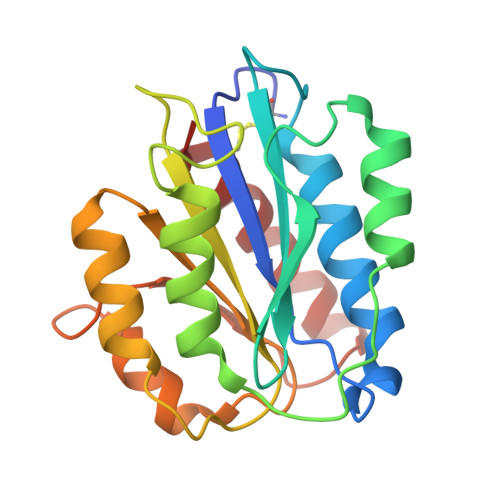

Collagen alpha-1(VII) chain	A, E	194	Homo sapiens	Mutation(s): 0 Gene Names: COL7A1
UniProt & NIH Common Fund Data Resources
Find proteins for Q02388 (Homo sapiens) Explore Q02388 Go to UniProtKB: Q02388
PHAROS: Q02388 GTEx: ENSG00000114270
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q02388
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

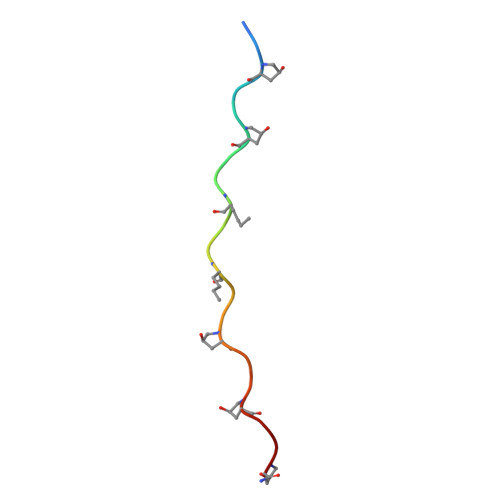

Collagen model peptide, Short-XGWXGA	B, C, D, F, G B, C, D, F, G, H	22	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain J [auth E] SDF format, chain I [auth A] MOL2 format, chain J [auth E] MOL2 format, chain I [auth A] mmCIF format, chain J [auth E] mmCIF format, chain I [auth A]	I [auth A], J [auth E]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain I [auth A] Focus chain J [auth E] Interactions & Density Focus chain I [auth A] Focus chain J [auth E]

Modified Residues 3 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
HYP Query on HYP	B, C, D, F, G B, C, D, F, G, H	L-PEPTIDE LINKING	C₅ H₉ N O₃		PRO
KLF Query on KLF	B, C, D, F, G B, C, D, F, G, H	L-PEPTIDE LINKING	C₅ H₁₀ N₂ O₂		PRO
NLE Query on NLE	B, C, D, F, G B, C, D, F, G, H	L-PEPTIDE LINKING	C₆ H₁₃ N O₂		LEU

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.47 Å
R-Value Free: 0.217 (Depositor), 0.216 (DCC)
R-Value Work: 0.176 (Depositor), 0.175 (DCC)
R-Value Observed: 0.180 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 72.007	α = 90
b = 37.17	β = 115.77
c = 80.492	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHENIX	phasing
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-07

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-10-07
Type: Initial release
