9S27 | pdb_00009s27

Crystal structure of human SIRT3 in complex with the covalent adduct of peptide triazole inhibitor LTDi1 and ADP-ribose


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.194 (Depositor), 0.196 (DCC)
  • R-Value Work:
    0.181 (Depositor), 0.182 (DCC)
  • R-Value Observed:
    0.181 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

From Pharmacophore to Warhead: NAD + -Targeting Triazoles as Mechanism-Based Sirtuin Inhibitors.

Friedrich, F.Meleshin, M.Papenkordt, N.Gaitzsch, L.Prucker, I.Borso, M.Ruprecht, J.Vorreiter, C.Rast, S.Zhang, L.Schiedel, M.Sippl, W.Imhof, A.Jessen, H.J.Einsle, O.Schutkowski, M.Jung, M.

(2025) Angew Chem Int Ed Engl : e16782-e16782

  • DOI: https://doi.org/10.1002/anie.202516782
  • Primary Citation of Related Structures:
    9S1Z, 9S20, 9S21, 9S22, 9S23, 9S24, 9S25, 9S26, 9S27

  • PubMed Abstract:

    Sirtuins (SIRTs) are nicotinamide adenine dinucleotide (NAD + )-dependent lysine deacylases linked to key physiological and disease processes. Here, we report a new class of mechanism-based 1,2,3-triazole inhibitors that hijack SIRT catalysis by forming stalled triazolium- or triazole-ADP-ribose (ADPR) adducts derived from the cofactor NAD + . These trapped adducts inhibit the enzyme without covalent protein modification, prompting us to term the compounds "Sirtuin Trapping Ligands" (SirTraps). X-ray crystallography and kinetics, together with mass spectrometry confirming adduct formation both in vitro and in cellulo, reveal that the triazole N3 of peptide- and small-molecule-based SirTraps triggers nucleophilic attack at C1' of the nicotinamide riboside moiety of NAD⁺, mimicking the first deacylation step. Adduct formation critically depends on precise triazole positioning within the acyl-lysine channel and can be tuned through scaffold design, enabling potent and isoform-selective inhibition. Unlike thiocarbonyl-based NAD⁺-targeting SIRT inhibitors, which may suffer from instability and off-target effects, SirTraps combine high stability, synthetic accessibility, and structural tunability, while demonstrating nanomolar cellular target engagement confirmed by NanoBRET assays. Beyond SIRTs, this inhibition strategy may extend to other NAD⁺-dependent enzymes, including ADP-ribosyltransferases, opening new avenues for mechanism-driven drug discovery.


  • Organizational Affiliation
    • Institute of Pharmaceutical Sciences, University of Freiburg, Albertstr. 25, 79104, Freiburg, Germany.

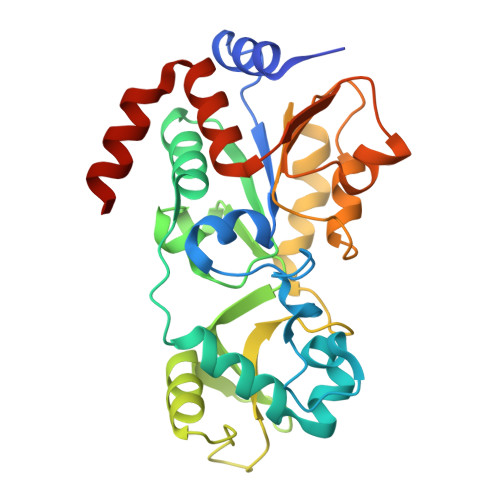

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
NAD-dependent protein deacetylase sirtuin-3, mitochondrial281Homo sapiensMutation(s): 0
Gene Names: SIRT3SIR2L3
EC: 3.5.1 (PDB Primary Data), 2.3.1 (UniProt), 2.3.1.286 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NTG7 (Homo sapiens)
Explore Q9NTG7
Go to UniProtKB:  Q9NTG7
PHAROS:  Q9NTG7
GTEx:  ENSG00000142082
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NTG7
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

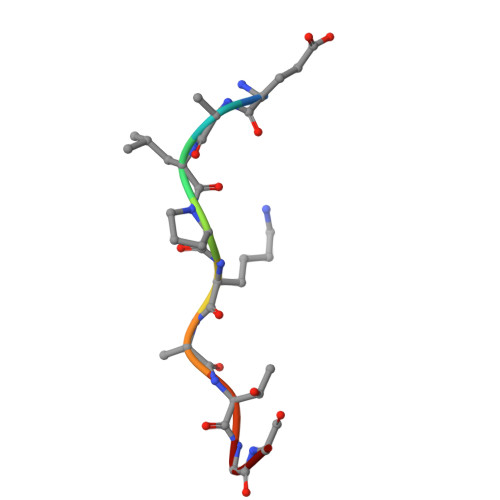

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
TNFa-derived lysine triazole dodecyl inhibitor9Homo sapiensMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1JK8 (Subject of Investigation/LOI)
Query on A1JK8

Download Ideal Coordinates CCD File
F [auth B][[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2~{R},3~{S},4~{R},5~{S})-5-(5-dodecyl-3-propyl-1,2,3$l^{4}-triazacyclopenta-2,4-dien-1-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl hydrogen phosphate
C32 H55 N8 O13 P2
GXGCWOFWCBSDFH-ZGLWUQATSA-O
BU3
Query on BU3

Download Ideal Coordinates CCD File
D [auth A],
E [auth A]
(R,R)-2,3-BUTANEDIOL
C4 H10 O2
OWBTYPJTUOEWEK-QWWZWVQMSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
C [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.194 (Depositor), 0.196 (DCC)
  • R-Value Work:  0.181 (Depositor), 0.182 (DCC)
  • R-Value Observed: 0.181 (Depositor)
Space Group: H 3 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 97.102α = 90
b = 97.102β = 90
c = 203.673γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
autoPROCdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanyJu295/18-1

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
