9NPR | pdb_00009npr

RAVV glycoprotein in complex with hNPC1-C

• PDB DOI: https://doi.org/10.2210/pdb9NPR/pdb
• EM Map EMD-49630: EMDB EMDataResource

• Classification: VIRAL PROTEIN
• Organism(s): Homo sapiens, Ravn virus - Ravn, Kenya, 1987
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2025-03-11 Released: 2025-12-31
• Deposition Author(s): Ye, G., Bu, F., Liu, B., Li, F.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.53 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM structure of Ravn marburgvirus glycoprotein complexed with its human endosomal receptor NPC1

Bu, F., Ye, G., Liu, B., Li, F.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C3  (Explore in 3D)
Global Stoichiometry: Hetero 9-mer - A3B3C3

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 272.44 kDa
• Atom Count: 11,006
• Modeled Residue Count: 1,311
• Deposited Residue Count: 2,349
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

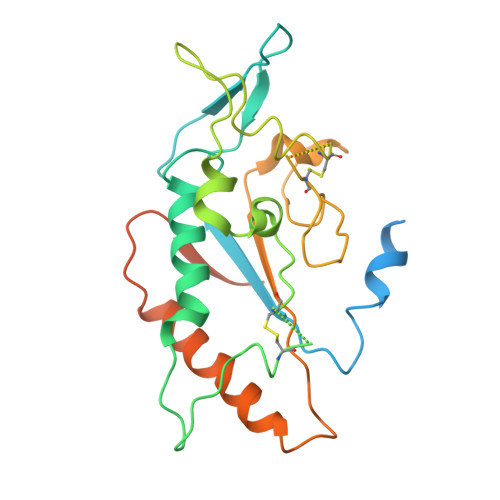

NPC intracellular cholesterol transporter 1	A [auth G], B [auth H], C [auth I]	280	Homo sapiens	Mutation(s): 0  Gene Names: NPC1
UniProt & NIH Common Fund Data Resources
Find proteins for O15118 (Homo sapiens) Explore O15118  Go to UniProtKB:  O15118
PHAROS:  O15118 GTEx:  ENSG00000141458
Glycosylation
Glycosylation Sites: 1		Go to GlyGen: O15118-1

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

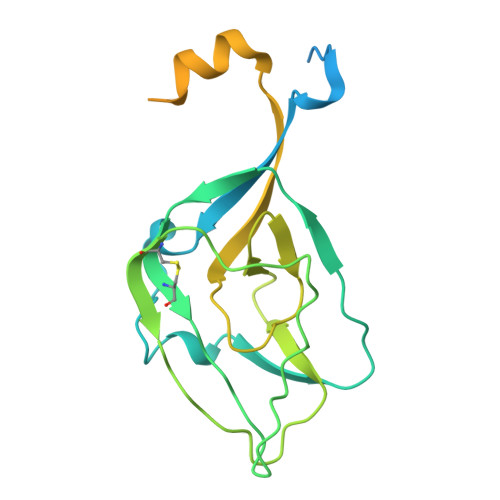

Envelope glycoprotein RAVV GP1	D [auth A], F [auth B], H [auth C]	256	Ravn virus - Ravn, Kenya, 1987	Mutation(s): 0  Gene Names: GP
UniProt
Find proteins for Q1PDC7 (Lake Victoria marburgvirus (strain Ravn-87)) Explore Q1PDC7  Go to UniProtKB:  Q1PDC7
Glycosylation
Glycosylation Sites: 1

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

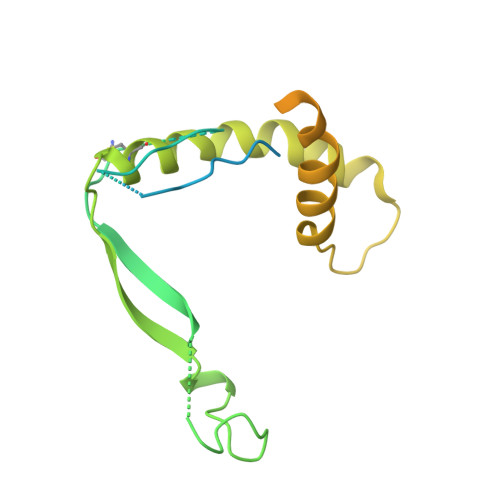

Envelope glycoprotein RAVV GP2	E [auth D], G [auth E], I [auth F]	247	Ravn virus - Ravn, Kenya, 1987	Mutation(s): 0  Gene Names: GP
UniProt
Find proteins for Q1PDC7 (Lake Victoria marburgvirus (strain Ravn-87)) Explore Q1PDC7  Go to UniProtKB:  Q1PDC7
Glycosylation
Glycosylation Sites: 1

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	J [auth K], K [auth L], L [auth M], P [auth Q], Q [auth R], R [auth S]	5		N-Glycosylation

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	M [auth N], N [auth O], O [auth P]	3		N-Glycosylation

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.53 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.1_5286:

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-31
Deposition Author(s): Ye, G., Bu, F., Liu, B., Li, F.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI089728
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI171954

Revision History

• Version 1.0: 2025-12-31
  Type: Initial release
