9M4U | pdb_00009m4u

Crystal Structure of Sortase E mutant P94A from Thermobifida fusca

• PDB DOI: https://doi.org/10.2210/pdb9M4U/pdb

• Classification: HYDROLASE
• Organism(s): Thermobifida fusca YX
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2025-03-04 Released: 2026-03-04
• Deposition Author(s): Sharma, V., Murmu, S., Roy, R.P., Krishnan, V.
• Funding Organization(s): Department of Biotechnology (DBT, India)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.69 Å
• R-Value Free:
  0.181 (Depositor), 0.192 (DCC)
• R-Value Work:
  0.149 (Depositor), 0.162 (DCC)
• R-Value Observed:
  0.151 (Depositor)

Starting Model: experimental

Literature

Crystal Structure of Sortase E mutant P94A from Thermobifida fusca

Sharma, V., Murmu, S., Roy, R.P., Krishnan, V.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 40.83 kDa
• Atom Count: 2,891
• Modeled Residue Count: 344
• Deposited Residue Count: 362
• Unique protein chains: 1

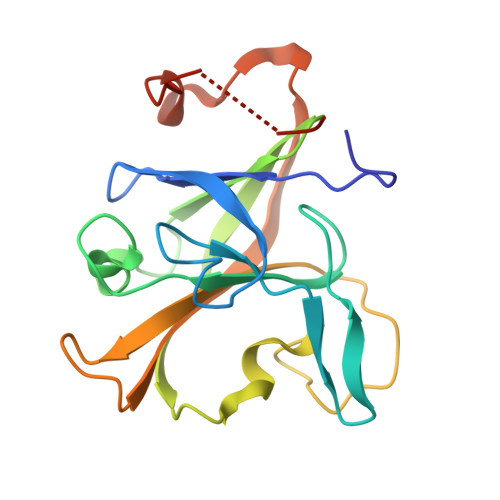

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Peptidase C60, sortase A and B	A [auth B], B [auth A]	181	Thermobifida fusca YX	Mutation(s): 1  Gene Names: Tfu_2383
UniProt
Find proteins for Q47MA6 (Thermobifida fusca (strain YX)) Explore Q47MA6  Go to UniProtKB:  Q47MA6

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
EDO (Subject of Investigation/LOI)	D [auth B], E [auth B], H [auth A], I [auth A]	1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N
NA (Subject of Investigation/LOI)	C [auth B], F [auth A], G [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.69 Å
• R-Value Free:  0.181 (Depositor), 0.192 (DCC)
• R-Value Work:  0.149 (Depositor), 0.162 (DCC)
• R-Value Observed: 0.151 (Depositor)

Space Group: I 4

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 111.976	α = 90
b = 111.976	β = 90
c = 71.811	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
autoPROC	data reduction
autoPROC	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-03-04
Deposition Author(s): Sharma, V., Murmu, S., Roy, R.P., Krishnan, V.

---

Funding Organization	Location	Grant Number
Department of Biotechnology (DBT, India)	India	--

Revision History

• Version 1.0: 2026-03-04
  Type: Initial release
