9LGP | pdb_00009lgp

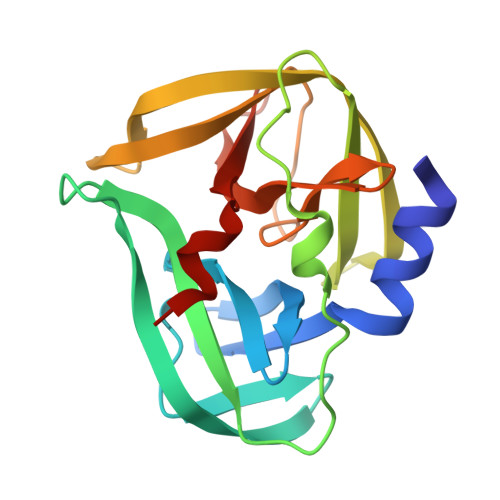

Crystal structure of the HRV B14 3C protease in complex with AG7404


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.11 Å
  • R-Value Free:
    0.267 (Depositor), 0.267 (DCC)
  • R-Value Work:
    0.225 (Depositor), 0.225 (DCC)
  • R-Value Observed:
    0.227 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural insights into the antiviral efficacy of AG7404 against human rhinovirus 3C proteases.

Lee, J.Lee, H.L.Kim, H.Gil, Y.Lee, S.H.Jung, Y.S.Shin, J.S.Jo, I.

(2026) IUCrJ

  • DOI: https://doi.org/10.1107/S2052252525008929
  • Primary Citation of Related Structures:
    9LGP

  • PubMed Abstract:

    Human rhinoviruses (hRVs) are major causative agents of the common cold and contribute to lower respiratory tract infections. Although extensive research efforts continue to explore potential therapeutic interventions, no clinically approved antiviral treatment currently exists for hRV infections. This study provides the structural basis of hRV 3C protease inhibition in several serotypes by AG7404, a modified rupintrivir derivative. AG7404 showed potent antiviral activity against hRV-B14, hRV-A16 and hRV-A21 with EC 50 values of 0.108, 0.191 and 0.187 µM, respectively, and directly inhibited purified hRV-B14 3C protease with an IC 50 of 0.046 µM. The 2.11 Å crystal structure of hRV-B14 3C protease in complex with AG7404 revealed covalent binding to the catalytic Cys146 and occupation of the substrate-binding pockets by the ligand. Comparative structural analyses incorporating ligand-free hRV-B14 3C protease structures as well as rupintrivir-bound 3C protease structures from other hRV serotypes revealed significant conformational variability of the βcII-βdII region. Molecular dynamics simulations of the structural models of hRV-A16 and hRV-A21 3C proteases showed that the binding interactions of AG7404, including critical water-mediated networks, are conserved across serotypes despite sequence variations. These findings offer structural insights into the binding mode of AG7404 and establish a foundation for the rational design of broad-spectrum antivirals targeting hRV 3C proteases.


  • Organizational Affiliation
    • Infectious Diseases Therapeutic Research Center, Division of Therapeutics and Biotechnology, Korea Research Institute of Chemical Technology (KRICT), Daejeon 34114, Republic of Korea.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Genome polyprotein
A, B, C, D
182rhinovirus B14Mutation(s): 0
UniProt
Find proteins for P03303 (Human rhinovirus 14)
Explore P03303
Go to UniProtKB:  P03303
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03303
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.11 Å
  • R-Value Free:  0.267 (Depositor), 0.267 (DCC)
  • R-Value Work:  0.225 (Depositor), 0.225 (DCC)
  • R-Value Observed: 0.227 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 32.88α = 90
b = 148.66β = 92.62
c = 67.41γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata scaling
PHASERphasing
XDSdata reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentKorea, Republic OfKK2532-10
Other governmentKorea, Republic OfKK2432-10

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-19
    Type: Initial release
