9KWH | pdb_00009kwh

Crystal structure of S. aureus tryptophanyl-tRNA synthetase complexed with chuangxinmycin


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.38 Å
  • R-Value Free:
    0.203 (Depositor), 0.203 (DCC)
  • R-Value Work:
    0.195 (Depositor), 0.196 (DCC)
  • R-Value Observed:
    0.196 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Mechanistic insights into the ATP-mediated and species-dependent inhibition of TrpRS by chuangxinmycin.

Ren, Y.Wang, S.Liu, W.Wang, J.Fang, P.

(2025) RSC Chem Biol 6: 1079-1088

  • DOI: https://doi.org/10.1039/d5cb00060b
  • Primary Citation of Related Structures:
    9KVC, 9KW0, 9KWH, 9KWW, 9KXB, 9KXR, 9KY3, 9KY9, 9M1F, 9M1G

  • PubMed Abstract:

    Chuangxinmycin (CXM) is a promising antimicrobial compound targeting bacterial tryptophanyl-tRNA synthetase (TrpRS), an essential enzyme in protein synthesis. The detailed inhibitory mechanism of CXM, particularly in clinically relevant pathogenic bacteria, is poorly understood. In this study, based on the determination of 10 crystal structures, including Escherichia coli TrpRS ( Ec TrpRS) and Staphylococcus aureus TrpRS ( Sa TrpRS) in complex with CXM, ATP, tryptophan, or CXM derivatives, either individually or in combination, as well as the structure of apo- Sa TrpRS, we provide key insights into the binding mode of CXM and its species-specific inhibitory mechanisms. Combined with molecular dynamics simulations and binding energy analysis, we demonstrate that CXM binds to Ec TrpRS in a manner highly similar to the natural substrate tryptophan. Key residues, including D135 and Y128, play critical roles in CXM recognition and fixation, while conserved hydrophobic residues contribute significantly to binding free energy. This binding pattern is consistent with that observed in Geobacillus stearothermophilus TrpRS ( Gs TrpRS). However, Sa TrpRS exhibits distinct behavior due to structural differences, particularly the orientation of Y126 (corresponding to Y128 in Ec TrpRS). This difference results in the selectivity of 3-methylchuangxinmycin (mCXM), a CXM derivative, against Sa TrpRS. Furthermore, modeling CXM into the tryptophan-binding site of human cytoplasmic TrpRS ( Hs TrpRS) reveals the lack of key hydrogen bonds and a salt bridge interaction, which likely underlies CXM's significantly weaker inhibition of Hs TrpRS. These findings deepen our understanding of the inhibitory mechanism of CXM and its selectivity toward bacterial TrpRSs, and thus can facilitate the design of next-generation antibiotics targeting bacterial TrpRSs.


  • Organizational Affiliation

    State Key Laboratory of Chemical Biology, Shanghai Institute of Organic Chemistry, University of Chinese Academy of Sciences, Chinese Academy of Sciences 345 Lingling Road Shanghai 200032 China wliu@sioc.ac.cn jwang@sioc.ac.cn fangpengfei@sioc.ac.cn.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

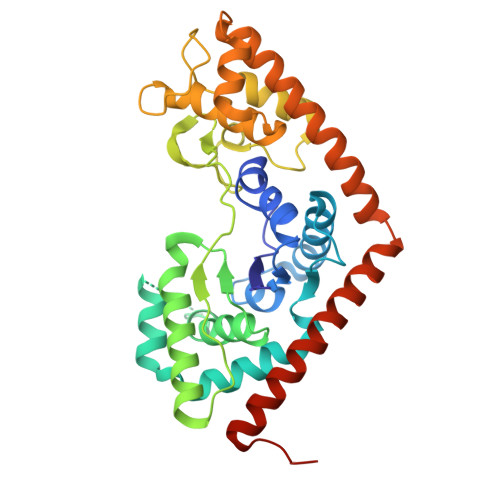

Tryptophan--tRNA ligase
A, B, C
335Staphylococcus aureusMutation(s): 0
Gene Names:
EC: 6.1.1.2
UniProt
Find proteins for W8U075 (Staphylococcus aureus)
Explore W8U075
Go to UniProtKB:  W8U075
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8U075
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.38 Å
  • R-Value Free:  0.203 (Depositor), 0.203 (DCC)
  • R-Value Work:  0.195 (Depositor), 0.196 (DCC)
  • R-Value Observed: 0.196 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 184.6α = 90
b = 66.52β = 101.65
c = 99.5γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2022YFC2303100

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-23
    Type: Initial release
