9FXV | pdb_00009fxv

Influenza polymerase A C-terminal domain of PA subunit with peptide inhibitor containing two norleucines

• PDB DOI: https://doi.org/10.2210/pdb9FXV/pdb

• Classification: VIRAL PROTEIN
• Organism(s): Influenza A virus (A/California/07/2009(H1N1)), synthetic construct
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-07-02 Released: 2025-07-16
• Deposition Author(s): Radilova, K., Brynda, J.
• Funding Organization(s): European Union (EU)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.30 Å
• R-Value Free:
  0.279 (Depositor), 0.271 (DCC)
• R-Value Work:
  0.242 (Depositor), 0.229 (DCC)
• R-Value Observed:
  0.243 (Depositor)

Starting Model: experimental

Literature

Influenza polymerase A C-terminal domain of PA subunit

Radilova, K., Zima, V., Brynda, J., Konvalinka, J., Machara, A., Kozisek, M.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors.

Macromolecule Content

• Total Structure Weight: 54.5 kDa
• Atom Count: 3,564
• Modeled Residue Count: 430
• Deposited Residue Count: 471
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

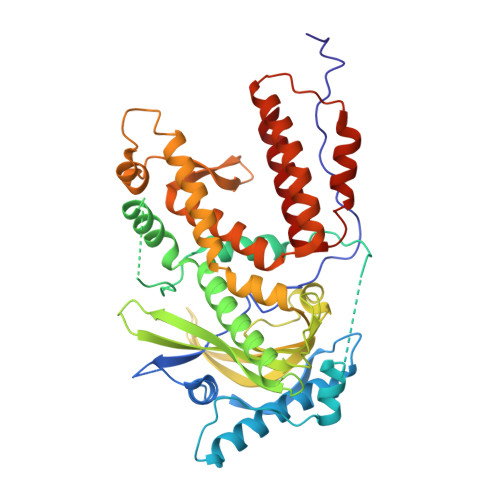

Polymerase acidic protein	A	461	Influenza A virus (A/California/07/2009(H1N1))	Mutation(s): 0  Gene Names: PA EC: 3.1
UniProt
Find proteins for C3W5X6 (Influenza A virus) Explore C3W5X6  Go to UniProtKB:  C3W5X6

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

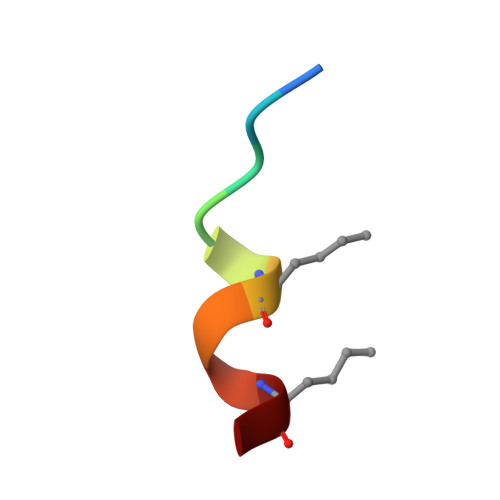

Peptide inhibitor	B	10	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PG4	D [auth A]	TETRAETHYLENE GLYCOL C8 H18 O5 UWHCKJMYHZGTIT-UHFFFAOYSA-N
EDO	C [auth A]	1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
NLE	B	L-PEPTIDE LINKING	C6 H13 N O2		LEU

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.30 Å
• R-Value Free:  0.279 (Depositor), 0.271 (DCC)
• R-Value Work:  0.242 (Depositor), 0.229 (DCC)
• R-Value Observed: 0.243 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 37.857	α = 90
b = 119.561	β = 90
c = 123.281	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XSCALE	data scaling
XDS	data reduction
MOLREP	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-16
Deposition Author(s): Radilova, K., Brynda, J.

---

Funding Organization	Location	Grant Number
European Union (EU)	European Union	LX22NPO5103

Revision History

• Version 1.0: 2025-07-16
  Type: Initial release
