9D5G | pdb_00009d5g

Crystal structure of the ILK/alpha-parvin core complex bound to 4-methyl erlotinib

• PDB DOI: https://doi.org/10.2210/pdb9D5G/pdb

• Classification: TRANSFERASE/INHIBITOR
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2024-08-13 Released: 2025-10-29
• Deposition Author(s): Fukuda, K., Qin, J.
• Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.55 Å
• R-Value Free:
  0.221 (Depositor), 0.219 (DCC)
• R-Value Work:
  0.194 (Depositor), 0.194 (DCC)
• R-Value Observed:
  0.195 (Depositor)

Starting Model: experimental

Literature

Crystal structure of the ILK/alpha-parvin core complex bound to 4-methyl erlotinib

Fukuda, K., Qin, J.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 46.5 kDa
• Atom Count: 3,546
• Modeled Residue Count: 395
• Deposited Residue Count: 400
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

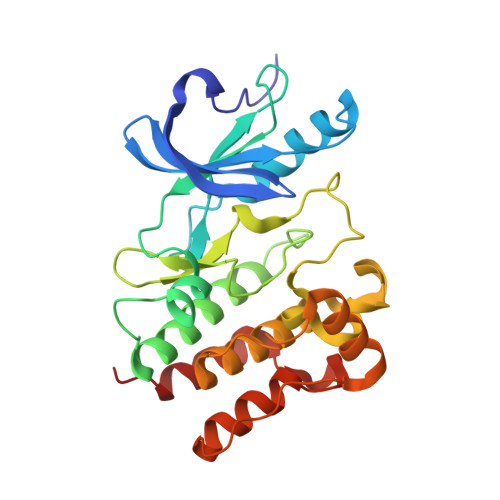

Integrin-linked protein kinase	A [auth AAAA]	271	Homo sapiens	Mutation(s): 2  Gene Names: ILK, ILK1, ILK2 EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q13418 (Homo sapiens) Explore Q13418  Go to UniProtKB:  Q13418
PHAROS:  Q13418 GTEx:  ENSG00000166333

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Alpha-parvin	B [auth BBBB]	129	Homo sapiens	Mutation(s): 0  Gene Names: PARVA, MXRA2
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NVD7 (Homo sapiens) Explore Q9NVD7  Go to UniProtKB:  Q9NVD7
PHAROS:  Q9NVD7 GTEx:  ENSG00000197702

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1A2V (Subject of Investigation/LOI)	C [auth AAAA]	4-methyl Erlotinib C23 H25 N3 O4 PENVNSXCNXIPIF-UHFFFAOYSA-N
B3P (Subject of Investigation/LOI)	D [auth BBBB]	2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL C11 H26 N2 O6 HHKZCCWKTZRCCL-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.55 Å
• R-Value Free:  0.221 (Depositor), 0.219 (DCC)
• R-Value Work:  0.194 (Depositor), 0.194 (DCC)
• R-Value Observed: 0.195 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 44.15	α = 90
b = 117.923	β = 101.577
c = 47.713	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-3000	data reduction
HKL-3000	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-29
Deposition Author(s): Fukuda, K., Qin, J.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	2R01HL058758-23A1

Revision History

• Version 1.0: 2025-10-29
  Type: Initial release
