8SE2 | pdb_00008se2

Structure of Full-length Human Protein Kinase C Beta 1 (PKCBI) in the Active and Inactive Conformation Soaked in Manganese Chloride

PDB DOI: https://doi.org/10.2210/pdb8SE2/pdb

Classification: SIGNALING PROTEIN,TRANSFERASE
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2023-04-07 Released: 2025-08-20
Deposition Author(s): Cong, A.T.Q., Witter, T.L., Bruinsma, E.S., Jayaraman, S., Hawse, J.R., Goetz, M.P., Schellenberg, M.J.
Funding Organization(s): Other private, National Institutes of Health/National Cancer Institute (NIH/NCI)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.95 Å
R-Value Free:
0.252 (Depositor), 0.253 (DCC)
R-Value Work:
0.194 (Depositor), 0.195 (DCC)
R-Value Observed:
0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Molecular Basis of Allosteric Regulation and Pharmaceutical Targeting of Protein Kinase C b

Cong, A.T.Q., Witter, T.L., Bruinsma, E.S., Bhattacharya, S.S., Jayaraman, S., Dugan, M.B., Paluncic, J., Kuffel, M.J., Farmakes, J., Alvey, J., Wu, X., Fields, A.P., Pandey, A., Hawse, J.R., Goetz, M.P., Schellenberg, M.J.

To be published.

Macromolecule Content

Total Structure Weight: 155.85 kDa
Atom Count: 9,713
Modeled Residue Count: 1,188
Deposited Residue Count: 1,344
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

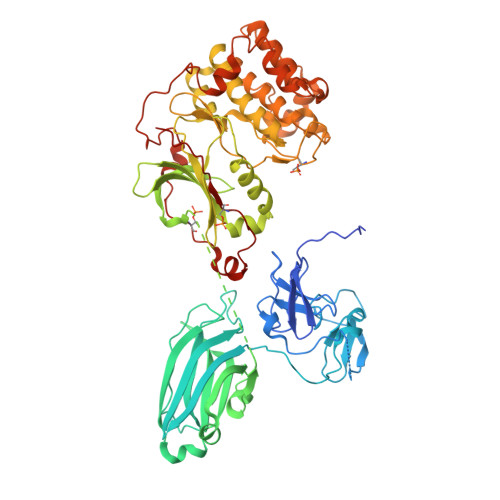

Protein kinase C beta type	A, B	672	Homo sapiens	Mutation(s): 0 Gene Names: PRKCB, PKCB, PRKCB1 EC: 2.7.11.13
UniProt & NIH Common Fund Data Resources
Find proteins for P05771 (Homo sapiens) Explore P05771 Go to UniProtKB: P05771
PHAROS: P05771 GTEx: ENSG00000166501
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P05771
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ANP Query on ANP Download Ideal Coordinates CCD File SDF format, chain H [auth B] MOL2 format, chain H [auth B] mmCIF format, chain H [auth B]	H [auth B]	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER C₁₀ H₁₇ N₆ O₁₂ P₃ PVKSNHVPLWYQGJ-KQYNXXCUSA-N		Interactions Focus chain H [auth B] Interactions & Density Focus chain H [auth B]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain N [auth B] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B]	D [auth A] E [auth A] F [auth A] G [auth A] K [auth B] D [auth A], E [auth A], F [auth A], G [auth A], K [auth B], L [auth B], M [auth B], N [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B]
MN Query on MN Download Ideal Coordinates CCD File SDF format, chain I [auth B] SDF format, chain J [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B]	I [auth B], J [auth B]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain I [auth B] Focus chain J [auth B] Interactions & Density Focus chain I [auth B] Focus chain J [auth B]
CA Query on CA Download Ideal Coordinates CCD File SDF format, chain O [auth B] MOL2 format, chain O [auth B] mmCIF format, chain O [auth B]	O [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain O [auth B] Interactions & Density Focus chain O [auth B]

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
SEP Query on SEP	A, B	L-PEPTIDE LINKING	C₃ H₈ N O₆ P		SER
TPO Query on TPO	A, B	L-PEPTIDE LINKING	C₄ H₁₀ N O₆ P		THR
