33YP | pdb_000033yp

SARS-CoV-2 nsp16-nsp10 in complex with SAM derivative ligand 1376

• PDB DOI: https://doi.org/10.2210/pdb33YP/pdb

• Classification: VIRAL PROTEIN
• Organism(s): Severe acute respiratory syndrome coronavirus 2
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2026-08-30 Released: 2026-09-16
• Deposition Author(s): Kalnins, G.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.40 Å
• R-Value Free:
  0.234 (Depositor), 0.233 (DCC)
• R-Value Work:
  0.199 (Depositor), 0.198 (DCC)
• R-Value Observed:
  0.201 (Depositor)

Starting Model: experimental

Literature

SARS-CoV-2 nsp16-nsp10 in complex with SAM derivative ligand 1376

Kalnins, G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 49.53 kDa
• Atom Count: 3,251
• Modeled Residue Count: 410
• Deposited Residue Count: 444
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

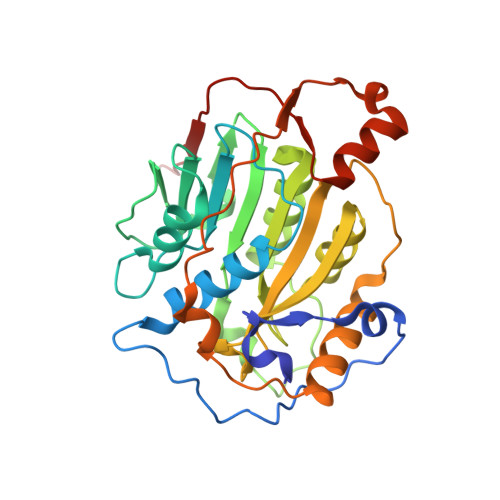

2'-O-methyltransferase nsp16	A	302	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  Gene Names: rep, 1a-1b EC: 2.1.1.57
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1  Go to UniProtKB:  P0DTD1

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

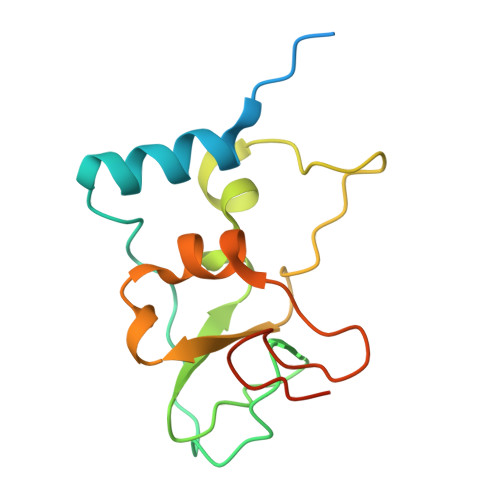

Non-structural protein 10	B	142	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1  Go to UniProtKB:  P0DTC1

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1KOW( Subject of Investigation/LOI)	C [auth A]	3-[[(2~{S},6~{R})-6-(6-aminopurin-9-yl)morpholin-2-yl]methylsulfanylmethyl]benzoic acid C18 H20 N6 O3 S WKQAPDQFMAZIBN-UONOGXRCSA-N
MES	D [auth A]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C6 H13 N O4 S SXGZJKUKBWWHRA-UHFFFAOYSA-N
ZN	E [auth B], F [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.40 Å
• R-Value Free:  0.234 (Depositor), 0.233 (DCC)
• R-Value Work:  0.199 (Depositor), 0.198 (DCC)
• R-Value Observed: 0.201 (Depositor)

Space Group: P 3₁ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 168.69	α = 90
b = 168.69	β = 90
c = 51.99	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
xia2	data reduction
Aimless	data scaling
MOLREP	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-09-16
Deposition Author(s): Kalnins, G.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2026-09-16
  Type: Initial release
