12KW | pdb_000012kw

Crystal structure of H5 hemagglutinin D190/H226Q from the A/British_Columbia/PHL-2032/2024 (H5N1)

PDB DOI: https://doi.org/10.2210/pdb12KW/pdb

Classification: VIRAL PROTEIN
Organism(s): Influenza A virus
Expression System: Spodoptera aff. frugiperda 1 BOLD-2017
Mutation(s): No

Deposited: 2026-04-10 Released: 2026-10-21
Deposition Author(s): Lin, T.H., Zhu, Y., Wilson, I.A.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.10 Å
R-Value Free:
0.247 (Depositor), 0.247 (DCC)
R-Value Work:
0.214 (Depositor), 0.213 (DCC)
R-Value Observed:
0.215 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structural and functional characterization of hemagglutinin E190D and Q226H minor variants in human H5N1 A/British_Columbia/PHL-2032/2024 in citation information

Lin, T.H., Zhu, X., Santos, J.S.J., Wang, S., Babarinde, S., Yu, W., McBride, R., Paulson, J.C., Hensley, S.E., Wilson, I.A.

To be published.

Macromolecule Content

Total Structure Weight: 173.13 kDa
Atom Count: 12,831
Modeled Residue Count: 1,477
Deposited Residue Count: 1,485
Unique protein chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

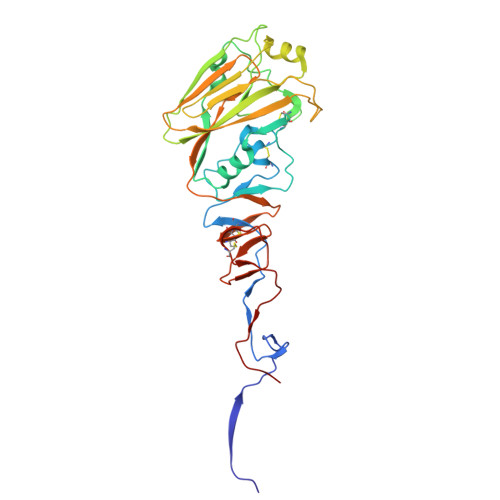

Hemagglutinin HA1	A, C, E	324	Influenza A virus	Mutation(s): 0 Gene Names: HA
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Glycosylation
Glycosylation Sites: 4	Glycosylation Focus chain A Focus chain C Focus chain E
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

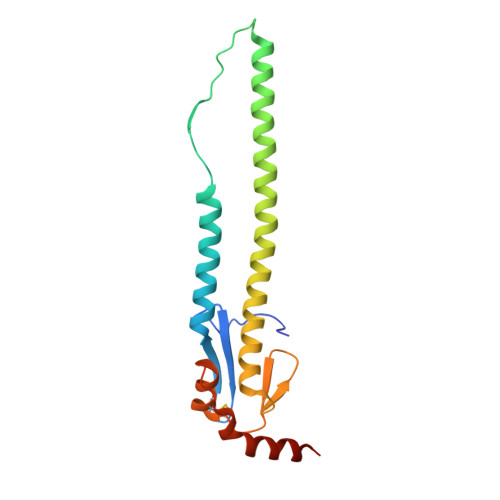

Hemagglutinin HA2	B, D, F	171	Influenza A virus	Mutation(s): 0 Gene Names: HA
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain B Focus chain D Focus chain F
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	G, I, J	2		N-Glycosylation	Interactions Focus chain G Focus chain I Focus chain J Interactions & Density Focus chain G Focus chain I Focus chain J

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	H	5		N-Glycosylation	Interactions Focus chain H Interactions & Density Focus chain H

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain N [auth A] SDF format, chain T [auth E] SDF format, chain S [auth E] SDF format, chain R [auth E] SDF format, chain Q [auth E] SDF format, chain P [auth C] SDF format, chain O [auth C] SDF format, chain M [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain N [auth A] MOL2 format, chain T [auth E] MOL2 format, chain S [auth E] MOL2 format, chain R [auth E] MOL2 format, chain Q [auth E] MOL2 format, chain P [auth C] MOL2 format, chain O [auth C] MOL2 format, chain M [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain N [auth A] mmCIF format, chain T [auth E] mmCIF format, chain S [auth E] mmCIF format, chain R [auth E] mmCIF format, chain Q [auth E] mmCIF format, chain P [auth C] mmCIF format, chain O [auth C] mmCIF format, chain M [auth A]	K [auth A] L [auth A] M [auth A] N [auth A] O [auth C] K [auth A], L [auth A], M [auth A], N [auth A], O [auth C], P [auth C], Q [auth E], R [auth E], S [auth E], T [auth E]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth C] Focus chain P [auth C] Focus chain Q [auth E] Focus chain R [auth E] Focus chain S [auth E] Focus chain T [auth E] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth C] Focus chain P [auth C] Focus chain Q [auth E] Focus chain R [auth E] Focus chain S [auth E] Focus chain T [auth E]
