11SH | pdb_000011sh

Covalent stabilizer compound 12 for the interaction between 14-3-3 sigma and Estrogen receptor-alpha peptide

PDB DOI: https://doi.org/10.2210/pdb11SH/pdb

Classification: PROTEIN BINDING
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-03-11 Released: 2026-08-26
Deposition Author(s): Knapp, M.S., Tang, J.Y.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free:
0.237 (Depositor), 0.219 (DCC)
R-Value Work:
0.205 (Depositor), 0.198 (DCC)
R-Value Observed:
0.207 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 11SH

This is version 1.0 of the entry. See complete history.

Literature

Covalent stabilizers of the interaction between 14-3-3 and Estrogen receptor-alpha

Rama, J., Skepper, C.K.

To be published.

Macromolecule Content

Total Structure Weight: 60.65 kDa
Atom Count: 4,081
Modeled Residue Count: 467
Deposited Residue Count: 536
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

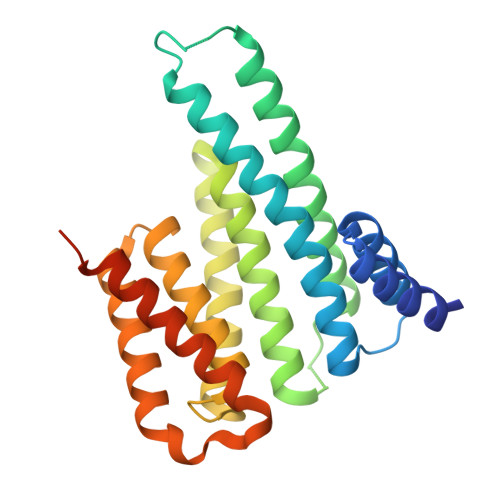

14-3-3 protein sigma	A, B [auth C]	253	Homo sapiens	Mutation(s): 0 Gene Names: SFN, HME1
UniProt & NIH Common Fund Data Resources
Find proteins for P31947 (Homo sapiens) Explore P31947 Go to UniProtKB: P31947
GTEx: ENSG00000175793
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P31947
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

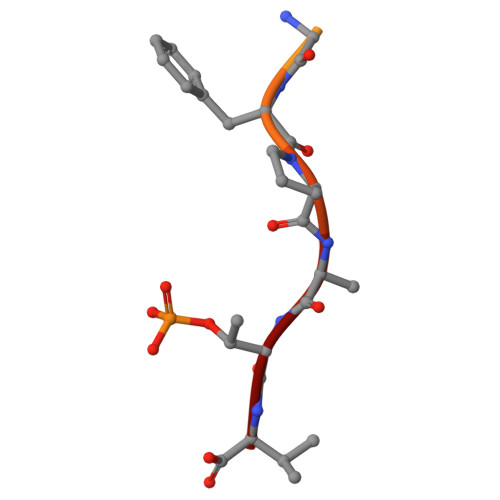

Estrogen receptor	C [auth X], D [auth Y]	15	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P03372 (Homo sapiens) Explore P03372 Go to UniProtKB: P03372
GTEx: ENSG00000091831
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P03372
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1DAH( Subject of Investigation/LOI) Query on A1DAH Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth C] MOL2 format, chain E [auth A] MOL2 format, chain F [auth C] mmCIF format, chain E [auth A] mmCIF format, chain F [auth C]	E [auth A], F [auth C]	(2S)-2-(4-chlorophenyl)-N-{2-[(Z)-iminomethyl]pyrimidin-5-yl}-2-[1-(1-methyl-1H-pyrazole-4-carbonyl)piperidin-4-yl]acetamide C₂₃ H₂₄ Cl N₇ O₂ NHXWRPAZLLXWIC-SMNLHKSPSA-N		Interactions Focus chain E [auth A] Focus chain F [auth C] Interactions & Density Focus chain E [auth A] Focus chain F [auth C]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
TPO Query on TPO	C [auth X], D [auth Y]	L-PEPTIDE LINKING	C₄ H₁₀ N O₆ P		THR

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free: 0.237 (Depositor), 0.219 (DCC)
R-Value Work: 0.205 (Depositor), 0.198 (DCC)
R-Value Observed: 0.207 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 56.539	α = 90
b = 138.214	β = 90
c = 158.335	γ = 90

Software Package:

Software Name	Purpose
BUSTER	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
