9XGK | pdb_00009xgk

Structure of mammalian RNA polymerase II stalled by Actinomycin D at the N-1 position.

PDB DOI: https://doi.org/10.2210/pdb9XGK/pdb
EM Map EMD-66852: EMDB EMDataResource

Classification: TRANSCRIPTION
Organism(s): Bos taurus, synthetic construct
Mutation(s): No

Deposited: 2025-10-30 Released: 2026-02-11
Deposition Author(s): Xu, J., Zhao, W.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.53 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of mammalian RNA polymerase II stalled by Actinomycin D induced pausing at the N-1 position.

Xu, J., Zhao, W.

To be published.

Macromolecule Content

Total Structure Weight: 552.98 kDa
Atom Count: 32,455
Modeled Residue Count: 3,970
Deposited Residue Count: 4,708
Unique protein chains: 13
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

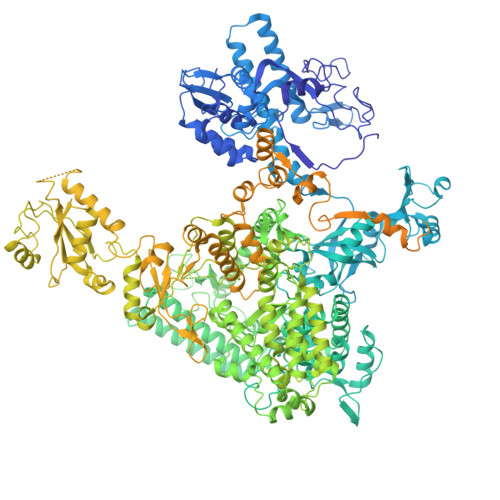

DNA-directed RNA polymerase II subunit RPB1	A	1,970	Bos taurus	Mutation(s): 0 EC: 2.7.7.6 (PDB Primary Data), 3.1.13 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt
Find proteins for G3MZY8 (Bos taurus) Explore G3MZY8 Go to UniProtKB: G3MZY8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	G3MZY8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

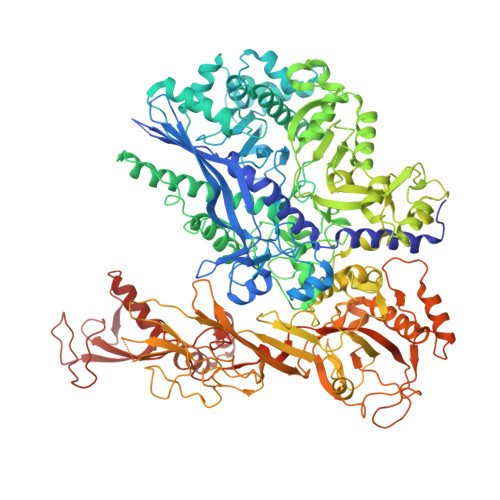

DNA-directed RNA polymerase II subunit RPB2	B	1,174	Bos taurus	Mutation(s): 0 EC: 2.7.7.6 (PDB Primary Data), 3.1.13 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt
Find proteins for A5PJW8 (Bos taurus) Explore A5PJW8 Go to UniProtKB: A5PJW8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A5PJW8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

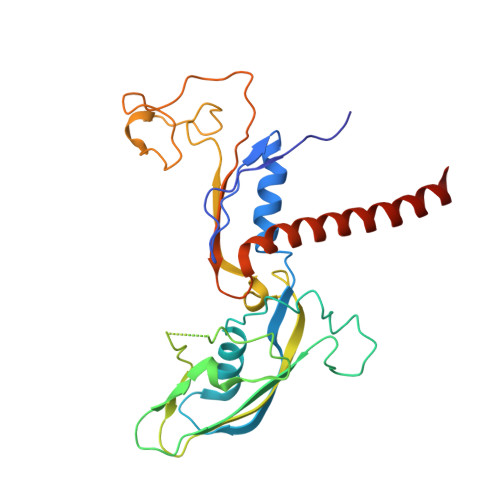

DNA-directed RNA polymerase II subunit RPB3	C	275	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q3T0Q3 (Bos taurus) Explore Q3T0Q3 Go to UniProtKB: Q3T0Q3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q3T0Q3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

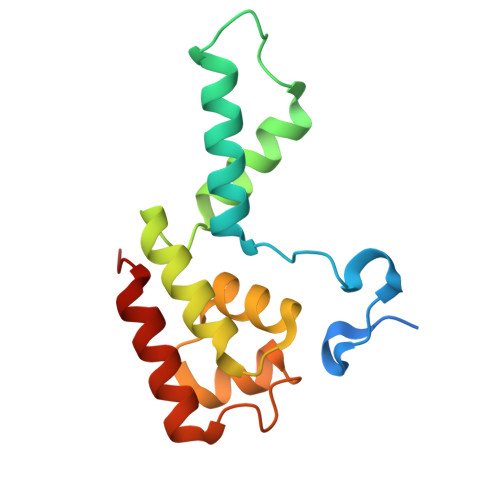

DNA-directed RNA polymerase II subunit RPB4	D	142	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q1JQ91 (Bos taurus) Explore Q1JQ91 Go to UniProtKB: Q1JQ91
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q1JQ91
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

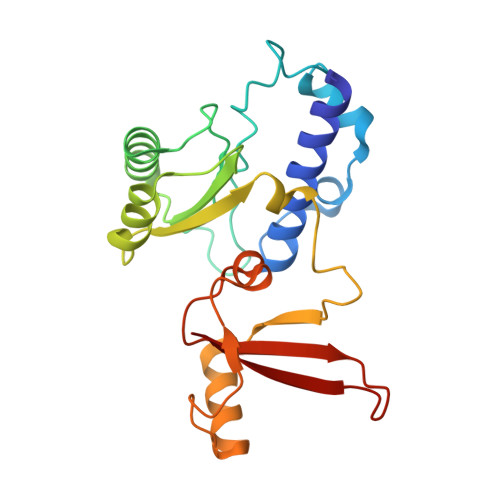

DNA-directed RNA polymerases I, II, and III subunit RPABC1	E	210	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q2T9T3 (Bos taurus) Explore Q2T9T3 Go to UniProtKB: Q2T9T3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q2T9T3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

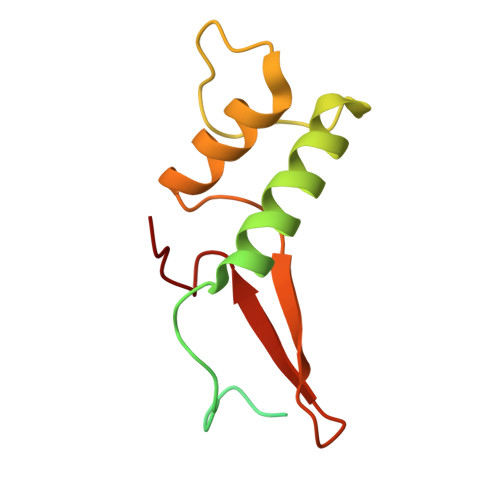

DNA-directed RNA polymerases I, II, and III subunit RPABC2	F	127	Bos taurus	Mutation(s): 0
UniProt
Find proteins for F2Z4C9 (Bos taurus) Explore F2Z4C9 Go to UniProtKB: F2Z4C9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	F2Z4C9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

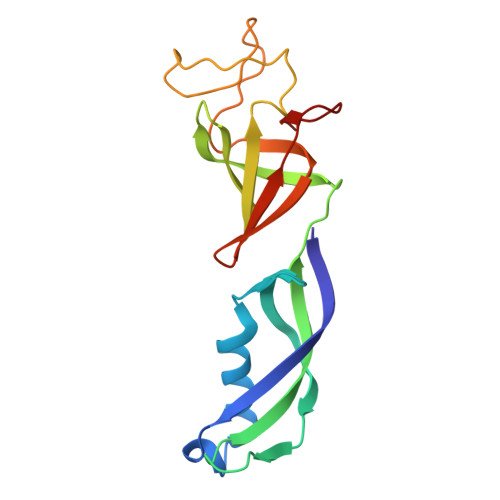

DNA-directed RNA polymerase II subunit RPB7	G	172	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q5E9B8 (Bos taurus) Explore Q5E9B8 Go to UniProtKB: Q5E9B8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q5E9B8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

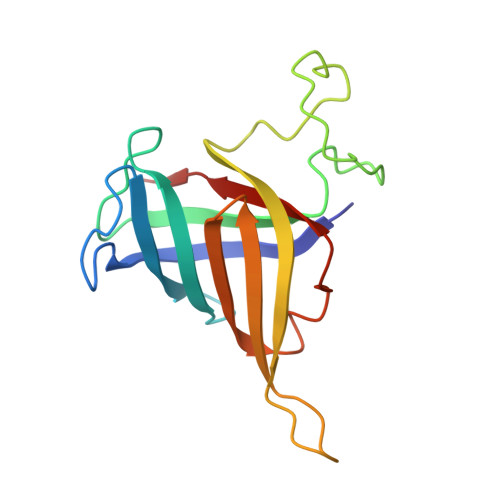

DNA-directed RNA polymerases I, II, and III subunit RPABC3	H	150	Bos taurus	Mutation(s): 0
UniProt
Find proteins for F2Z4H3 (Bos taurus) Explore F2Z4H3 Go to UniProtKB: F2Z4H3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	F2Z4H3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB9	I	125	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q32P73 (Bos taurus) Explore Q32P73 Go to UniProtKB: Q32P73
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q32P73
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

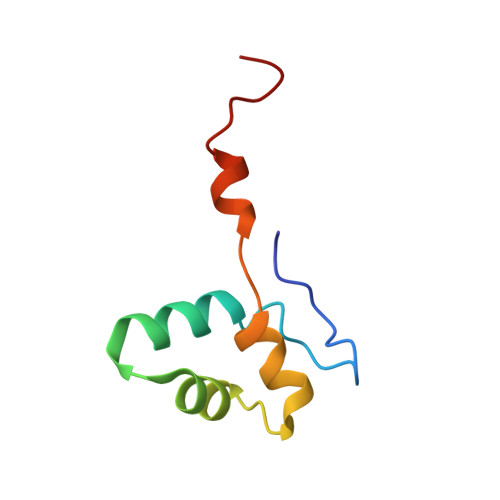

DNA-directed RNA polymerases I, II, and III subunit RPABC5	J	67	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q32P78 (Bos taurus) Explore Q32P78 Go to UniProtKB: Q32P78
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q32P78
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB11	K	117	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q32P79 (Bos taurus) Explore Q32P79 Go to UniProtKB: Q32P79
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q32P79
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

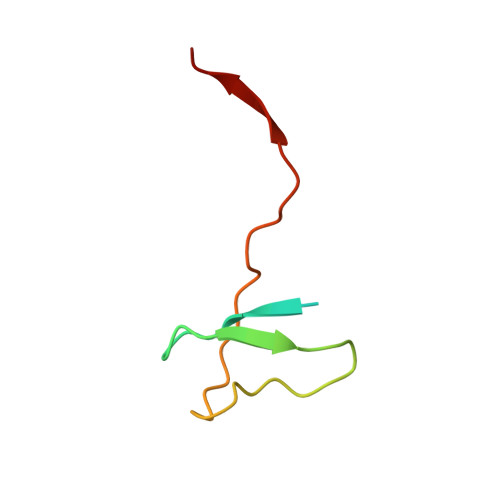

DNA-directed RNA polymerases I, II, and III subunit RPABC4	L	58	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q3ZBC0 (Bos taurus) Explore Q3ZBC0 Go to UniProtKB: Q3ZBC0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q3ZBC0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

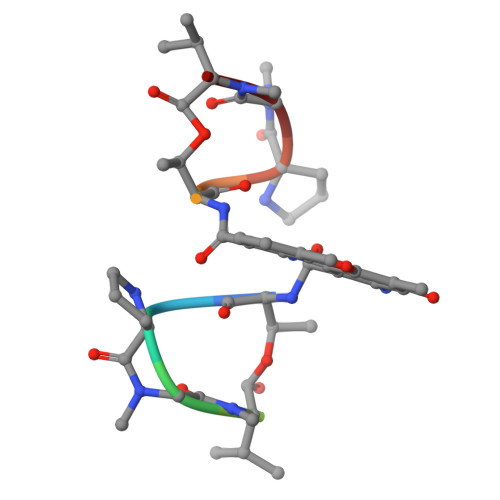

Actinomycin D	M	11	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Length	Organism	Image

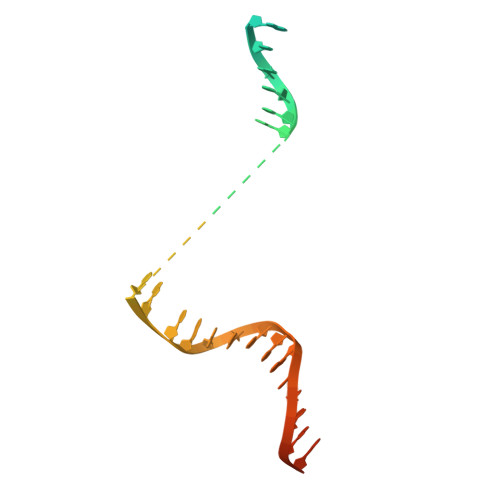

DNA (NTS, non-template strand)	N	48	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 15
Molecule	Chains	Length	Organism	Image
RNA	O [auth P]	13	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Length	Organism	Image

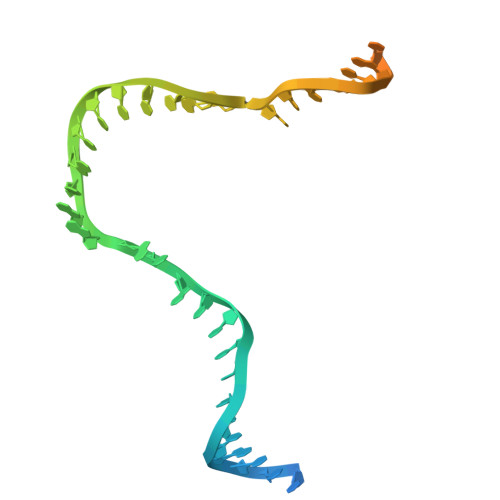

DNA (TS, template strand)	P [auth T]	49	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain Q [auth A] SDF format, chain R [auth A] SDF format, chain T [auth B] SDF format, chain U [auth C] SDF format, chain W [auth I] SDF format, chain X [auth J] SDF format, chain Y [auth L] SDF format, chain V [auth I] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth A] MOL2 format, chain T [auth B] MOL2 format, chain U [auth C] MOL2 format, chain W [auth I] MOL2 format, chain X [auth J] MOL2 format, chain Y [auth L] MOL2 format, chain V [auth I] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth A] mmCIF format, chain T [auth B] mmCIF format, chain U [auth C] mmCIF format, chain W [auth I] mmCIF format, chain X [auth J] mmCIF format, chain Y [auth L] mmCIF format, chain V [auth I]	Q [auth A] R [auth A] T [auth B] U [auth C] V [auth I] Q [auth A], R [auth A], T [auth B], U [auth C], V [auth I], W [auth I], X [auth J], Y [auth L]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain Q [auth A] Focus chain R [auth A] Focus chain T [auth B] Focus chain U [auth C] Focus chain V [auth I] Focus chain W [auth I] Focus chain X [auth J] Focus chain Y [auth L] Interactions & Density Focus chain Q [auth A] Focus chain R [auth A] Focus chain T [auth B] Focus chain U [auth C] Focus chain V [auth I] Focus chain W [auth I] Focus chain X [auth J] Focus chain Y [auth L]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain S [auth A] MOL2 format, chain S [auth A] mmCIF format, chain S [auth A]	S [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain S [auth A] Interactions & Density Focus chain S [auth A]

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MVA Query on MVA	M	L-PEPTIDE LINKING	C₆ H₁₃ N O₂		VAL
SAR Query on SAR	M	PEPTIDE LINKING	C₃ H₇ N O₂		GLY

Biologically Interesting Molecules (External Reference) 1 Unique

Entity ID: 13
ID	Chains	Name	Type/Class	2D Diagram	3D Interactions
PRD_000001 Query on PRD_000001	M	Actinomycin D	Polypeptide / Antibiotic		Interactions Focus chain M Interactions & Density Focus chain M

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.53 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-02-11

Deposition Author(s):

Xu, J.

Zhao, W.

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32370590

Revision History (Full details and data files)

Version 1.0: 2026-02-11
Type: Initial release
