9U3C | pdb_00009u3c

Monomeric sarcosine oxidase from Bacillus sp. (SoxB) complexed with L-Proline


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.54 Å
  • R-Value Free:
    0.176 (Depositor), 0.191 (DCC)
  • R-Value Work:
    0.149 (Depositor), 0.164 (DCC)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural and functional analysis of Bacillus sarcosine oxidase and its activity toward cyclic imino acids.

Zhang, Y.Nakajima, Y.Kurobe, M.Nakamura, T.Himiyama, T.Nishiya, Y.

(2025) FEBS Open Bio

  • DOI: https://doi.org/10.1002/2211-5463.70119
  • Primary Citation of Related Structures:
    9U3B, 9U3C, 9U3D, 9U3E, 9U3F

  • PubMed Abstract:

    This study investigated the reactivity of sarcosine oxidase (Sox) toward minor substrates through kinetic and structural analyses, along with mutational engineering to elucidate their reaction mechanisms. Sarcosine oxidase from Bacillus sp. (SoxB) recognizes the cyclic imino acids l-proline (l-Pro), d-proline (d-Pro), and l-thioproline (l-Tpr) as minor substrates. The reaction behavior varied depending on the substrates; notably, the absorption spectrum of l-Tpr exhibited charge transfer, which was characteristic of substrate inhibition. Crystal structures of the enzyme-substrate complexes suggested that Tyr254 causes spatial interference with cyclic imino acids at the active site. The Tyr254Ala and Tyr254Gly mutants exhibited enhanced reactivity toward cyclic imino acids by eliminating this spatial interference. Crystallographic analysis of the mutants revealed an enlarged active site, which facilitated reactions with five-membered cyclic imino acids. These mutations disrupted the electron delocalization associated with l-Tpr, thereby eliminating charge transfer and substrate inhibition. A water network was also identified near the enzyme's active site, interacting with the side chain of Tyr254. These findings provide valuable insights into substrate specificity and may facilitate the development of enzymes with broader substrate scope and enhanced catalytic activity.


  • Organizational Affiliation
    • Division of Life Science, Graduate School of Science and Engineering, Setsunan University, Osaka, Japan.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

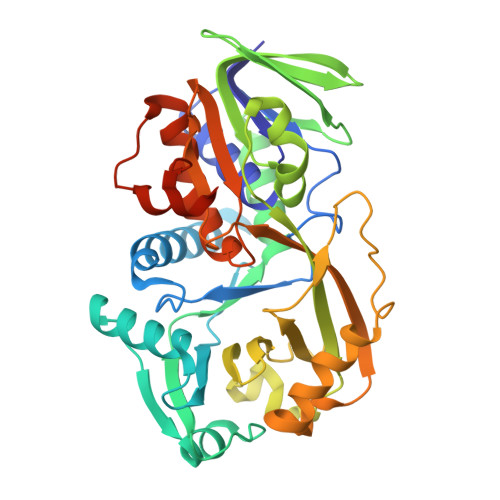

Monomeric sarcosine oxidase
A, B
397Bacillus sp. B-0618Mutation(s): 0
Gene Names: soxAsox
EC: 1.5.3.1
UniProt
Find proteins for P40859 (Bacillus sp. (strain B-0618))
Explore P40859
Go to UniProtKB:  P40859
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40859
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 6 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FAD (Subject of Investigation/LOI)
Query on FAD

Download Ideal Coordinates CCD File
C [auth A],
K [auth B]
FLAVIN-ADENINE DINUCLEOTIDE
C27 H33 N9 O15 P2
VWWQXMAJTJZDQX-UYBVJOGSSA-N
PRO (Subject of Investigation/LOI)
Query on PRO

Download Ideal Coordinates CCD File
D [auth A],
E [auth A],
L [auth B],
N [auth B]
PROLINE
C5 H9 N O2
ONIBWKKTOPOVIA-BYPYZUCNSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
J [auth A],
S [auth B]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
PO4
Query on PO4

Download Ideal Coordinates CCD File
R [auth B]PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
GOL
Query on GOL

Download Ideal Coordinates CCD File
F [auth A]
G [auth A]
I [auth A]
M [auth B]
O [auth B]
F [auth A],
G [auth A],
I [auth A],
M [auth B],
O [auth B],
P [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
H [auth A],
Q [auth B]
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.54 Å
  • R-Value Free:  0.176 (Depositor), 0.191 (DCC)
  • R-Value Work:  0.149 (Depositor), 0.164 (DCC)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 72.674α = 90
b = 69.049β = 93.972
c = 73.966γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan24K08609

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-24
    Type: Initial release
