9R3C | pdb_00009r3c

Recombinant human butyrylcholinesterase in complex with N-([(3S)-1-benzylpiperidin-3-yl]methyl)-N-(2-methoxyethyl)naphthalene-2-sulfonamide

PDB DOI: https://doi.org/10.2210/pdb9R3C/pdb

Classification: HYDROLASE
Organism(s): Homo sapiens
Expression System: Cricetulus griseus
Mutation(s): Yes

Deposited: 2025-05-03 Released: 2025-07-30
Deposition Author(s): Brazzolotto, X., Kosak, U., Gobec, S., Nachon, F.
Funding Organization(s): French Ministry of Armed Forces

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.31 Å
R-Value Free:
0.229 (Depositor), 0.229 (DCC)
R-Value Work:
0.190 (Depositor), 0.192 (DCC)
R-Value Observed:
0.192 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Chiral switch of a butyrylcholinesterase inhibitor for the treatment of Alzheimer's disease

Kosak, U., Knez, D., Benetik, S.F., Sokolov, P.M., Pislar, A., Horvat, S., Stojan, J., Lv, B., Zhang, W., Wang, Y., Wang, Q., Igert, A., Dias, J., Nachon, F., Brazzolotto, X., Sun, H., Gobec, S.

(2025) Chem Biol Interact : 111670

DOI: https://doi.org/10.1016/j.cbi.2025.111670

Macromolecule Content

Total Structure Weight: 63.3 kDa
Atom Count: 4,576
Modeled Residue Count: 527
Deposited Residue Count: 529
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

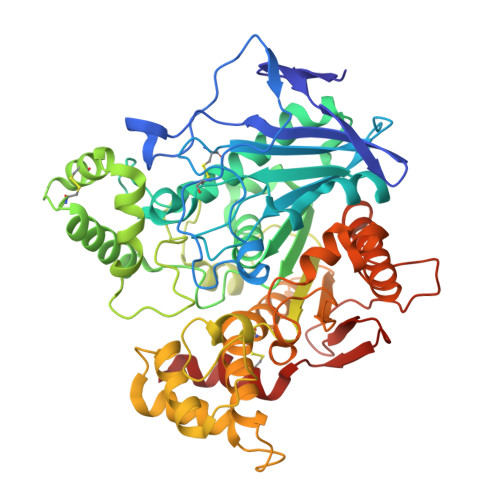

Cholinesterase	A	529	Homo sapiens	Mutation(s): 4 Gene Names: BCHE, CHE1 EC: 3.1.1.8
UniProt & NIH Common Fund Data Resources
Find proteins for P06276 (Homo sapiens) Explore P06276 Go to UniProtKB: P06276
PHAROS: P06276 GTEx: ENSG00000114200
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P06276
Glycosylation
Glycosylation Sites: 6	Glycosylation Focus chain A	Go to GlyGen: P06276-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose	B, C, F	2		N-Glycosylation	Interactions Focus chain B Focus chain C Focus chain F Interactions & Density Focus chain B Focus chain C Focus chain F

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	D, E	3		N-Glycosylation	Interactions Focus chain D Focus chain E Interactions & Density Focus chain D Focus chain E

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
5HF (Subject of Investigation/LOI) Query on 5HF Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	N-{[(3S)-1-benzylpiperidin-3-yl]methyl}-N-(2-methoxyethyl)naphthalene-2-sulfonamide C₂₆ H₃₂ N₂ O₃ S NIHBOOKOQZGYSF-QHCPKHFHSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
NAG Query on NAG Download Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
MES Query on MES Download Ideal Coordinates CCD File SDF format, chain H [auth A] MOL2 format, chain H [auth A] mmCIF format, chain H [auth A]	H [auth A]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C₆ H₁₃ N O₄ S SXGZJKUKBWWHRA-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Interactions & Density Focus chain H [auth A]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A]	K [auth A], L [auth A], M [auth A], N [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain J [auth A] MOL2 format, chain J [auth A] mmCIF format, chain J [auth A]	J [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Interactions & Density Focus chain J [auth A]
