9OP3 | pdb_00009op3

Structure of Human ADAR2-R2D complexed with dsRNA containing 8-azaN and 2'-Deoxy-2'-fluorouridine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.59 Å
  • R-Value Free:
    0.220 (Depositor), 0.220 (DCC)
  • R-Value Work:
    0.178 (Depositor), 0.178 (DCC)
  • R-Value Observed:
    0.180 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Control of ADAR2 Dimerization and RNA Editing Efficiency by Site-Specific 2'-Fluoro Modification of Guide RNAs.

Campbell, K.B.Ouye, R.B.Wong, B.L.Jiang, A.Okada, K.McKenney, R.J.Fisher, A.J.Beal, P.A.

(2025) ACS Chem Biol

  • DOI: https://doi.org/10.1021/acschembio.5c00493
  • Primary Citation of Related Structures:
    9OP3

  • PubMed Abstract:

    Adenosine Deaminases Acting on RNA (ADARs) are an important class of RNA editing enzymes that catalyze the deamination of adenosine (A) to inosine (I) in double-stranded RNA (dsRNA). Since inosine is typically read as guanosine (G) during translation, ADARs can produce A to G transitions in dsRNA. Site-directed RNA editing (SDRE) is a promising therapeutic tool wherein guide RNAs can be used to direct endogenous human ADARs to reverse disease-causing mutations in specific RNA transcripts. Guide RNA (gRNA) modifications at locations that contact the ADAR active site are often used to improve editing efficiency. However, little is known about rate-enhancing chemical modifications in the gRNA at the dsRNA binding domain (dsRBD)-RNA interface. Analysis of published crystal structures of ADAR2 bound to dsRNA suggested positions at this interface would be sensitive to gRNA modification. In this work, gRNAs bearing 2'-modifications in the dsRBD binding site were synthesized and subsequently tested to determine their effects on the editing rate of therapeutically relevant ADAR targets. We found that replacing a single 2'-OH at specific positions on the gRNA with a 2'-F substantially increased the rate of in vitro ADAR2-catalyzed adenosine deamination for two different sequences, whereas 2'-OMe at these positions was inhibitory. This effect was also validated in cellulo . The rate of ADAR1-catalyzed deamination is not stimulated by these 2'-F modifications. A crystal structure of an ADAR2 fragment bound to duplex RNA bearing a single 2'-F at guide position +13 suggested a favorable interaction between the side chain of N241 of the auxiliary ADAR2 monomer and the 2'-F modification. Furthermore, electrophoretic mobility shift assays and mass photometry indicate 2'-F at position +13 facilitates ADAR2 dimerization on the RNA substrate. This work advances our understanding of the RNA features that define superior ADAR substrates and inform the design of gRNAs for therapeutic RNA editing.


  • Organizational Affiliation
    • Department of Chemistry, University of California, Davis, Davis, California 95616, United States.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Double-stranded RNA-specific editase 1
A, B
488Homo sapiensMutation(s): 1
Gene Names: ADARB1ADAR2DRADA2RED1
EC: 3.5.4.37
UniProt & NIH Common Fund Data Resources
Find proteins for P78563 (Homo sapiens)
Explore P78563
Go to UniProtKB:  P78563
PHAROS:  P78563
GTEx:  ENSG00000197381
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP78563
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains LengthOrganismImage
RNA 32mer Top Strand32Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains LengthOrganismImage

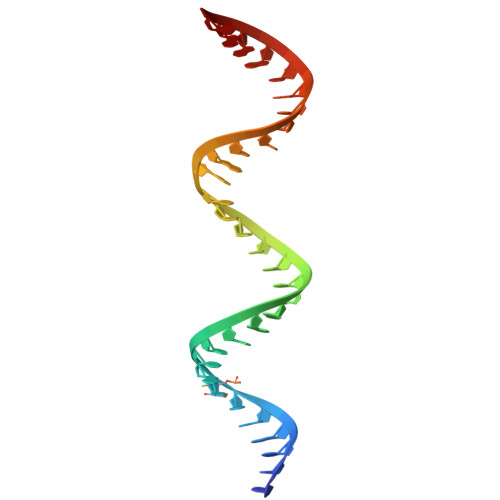

RNA 32mer 2F Bottom Strand32Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
IHP
Query on IHP

Download Ideal Coordinates CCD File
E [auth A],
K [auth B]
INOSITOL HEXAKISPHOSPHATE
C6 H18 O24 P6
IMQLKJBTEOYOSI-GPIVLXJGSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
F [auth A],
L [auth B]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
G [auth A],
H [auth A],
I [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
NA
Query on NA

Download Ideal Coordinates CCD File
J [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.59 Å
  • R-Value Free:  0.220 (Depositor), 0.220 (DCC)
  • R-Value Work:  0.178 (Depositor), 0.178 (DCC)
  • R-Value Observed: 0.180 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 170α = 90
b = 63.21β = 118.13
c = 142.2γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35GM141907
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM149799

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-08
    Type: Initial release
  • Version 1.1: 2025-11-12
    Changes: Database references
