9CZE | pdb_00009cze

High-Resolution Structure of Human DHODH for Molecular Replacement in Fragment Screening Campaign

PDB DOI: https://doi.org/10.2210/pdb9CZE/pdb

Classification: OXIDOREDUCTASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-08-05 Released: 2025-10-29
Deposition Author(s): Purificacao, A.D., Benz, L.S., Froes, T.Q., Weiss, M.S., Nonato, M.C.
Funding Organization(s): Brazilian National Council for Scientific and Technological Development (CNPq), Sao Paulo Research Foundation (FAPESP), iNEXT-Discovery

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free:
0.197 (Depositor), 0.197 (DCC)
R-Value Work:
0.180 (Depositor), 0.180 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Unexplored binding-sites on human DHODH identified by crystallographic fragment screening.

Purificacao, A.D., Benz, L.S., Froes, T.Q., Weiss, M.S., Nonato, M.C.

To be published.

Macromolecule Content

Total Structure Weight: 41.2 kDa
Atom Count: 3,124
Modeled Residue Count: 349
Deposited Residue Count: 368
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

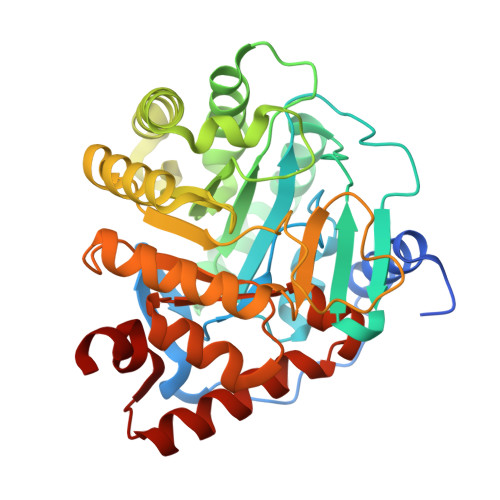

Dihydroorotate dehydrogenase (quinone), mitochondrial	A	368	Homo sapiens	Mutation(s): 0 Gene Names: DHODH EC: 1.3.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for Q02127 (Homo sapiens) Explore Q02127 Go to UniProtKB: Q02127
PHAROS: Q02127 GTEx: ENSG00000102967
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q02127
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
FMN (Subject of Investigation/LOI) Query on FMN Download Ideal Coordinates CCD File SDF format, chain M [auth A] MOL2 format, chain M [auth A] mmCIF format, chain M [auth A]	M [auth A]	FLAVIN MONONUCLEOTIDE C₁₇ H₂₁ N₄ O₉ P FVTCRASFADXXNN-SCRDCRAPSA-N		Interactions Focus chain M [auth A] Interactions & Density Focus chain M [auth A]
ORO (Subject of Investigation/LOI) Query on ORO Download Ideal Coordinates CCD File SDF format, chain L [auth A] MOL2 format, chain L [auth A] mmCIF format, chain L [auth A]	L [auth A]	OROTIC ACID C₅ H₄ N₂ O₄ PXQPEWDEAKTCGB-UHFFFAOYSA-N		Interactions Focus chain L [auth A] Interactions & Density Focus chain L [auth A]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
DMS Query on DMS Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A]	C [auth A], D [auth A]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A]
ACY Query on ACY Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A]	E [auth A] F [auth A] G [auth A] H [auth A] I [auth A] E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth A]	ACETIC ACID C₂ H₄ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain K [auth A] MOL2 format, chain K [auth A] mmCIF format, chain K [auth A]	K [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain K [auth A] Interactions & Density Focus chain K [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free: 0.197 (Depositor), 0.197 (DCC)
R-Value Work: 0.180 (Depositor), 0.180 (DCC)

Space Group: P 3₂ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 90.597	α = 90
b = 90.597	β = 90
c = 123.232	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
PHASER	phasing
XDS	data reduction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Brazilian National Council for Scientific and Technological Development (CNPq)	Brazil	441038/2020-4
Sao Paulo Research Foundation (FAPESP)	Brazil	2021/13237-5
Sao Paulo Research Foundation (FAPESP)	Brazil	2020/06190-0
iNEXT-Discovery	European Union	871037
